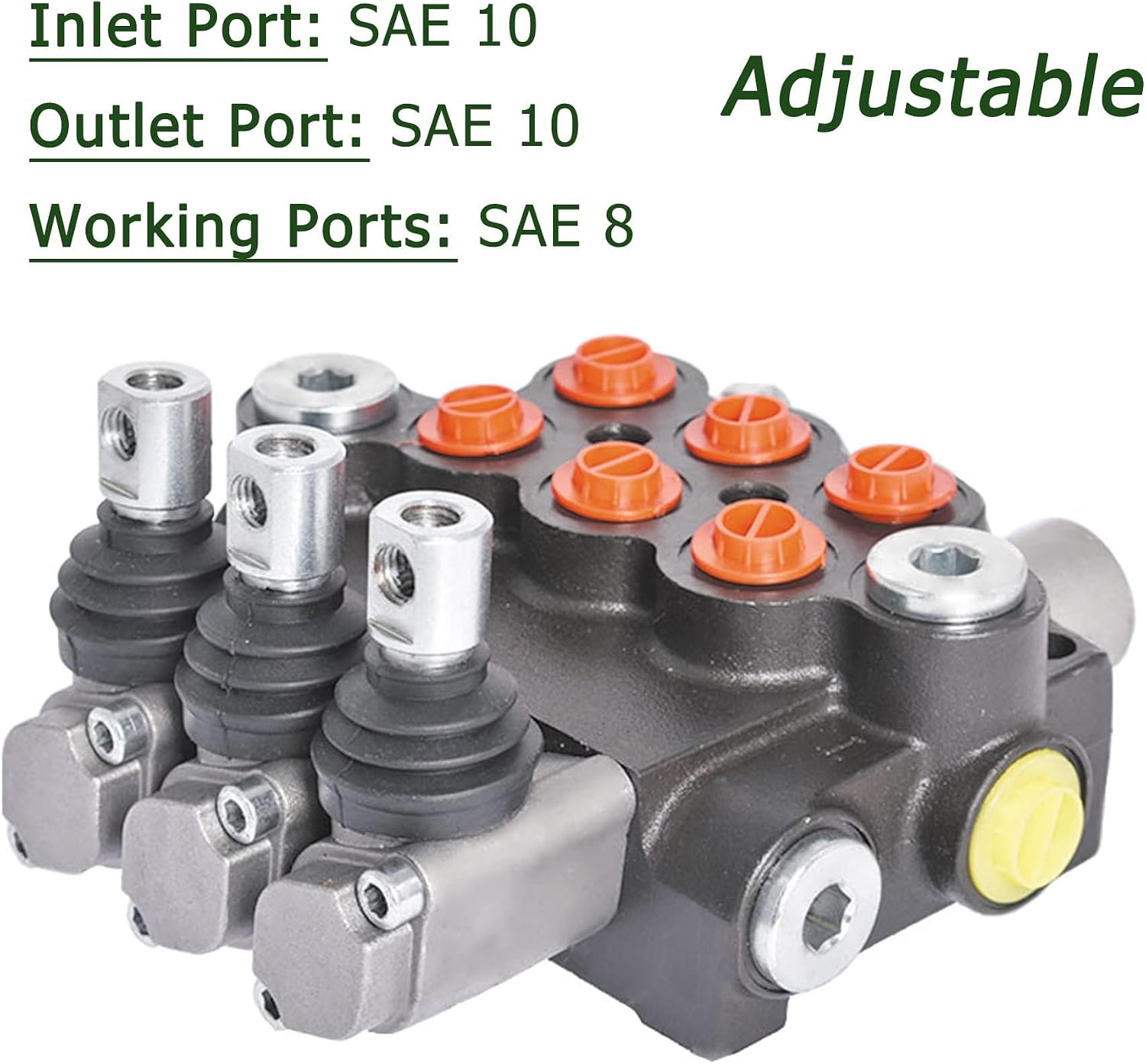

3 Spool 13GPM Hydraulic Directional Control Valve, 3600PSI SAE Ports Double Acting Hydraulic Valve with Joystick
Product details
| Management number | 222647673 | Release Date | 2026/05/04 | List Price | US$23.78 | Model Number | 222647673 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hydraulic Valve 3 Spool 13GPM 3600PSI SAE Ports Double Acting Hydraulic Directional Control ValveSpecification:Inlet Port: SAE 10Outlet Port: SAE 10Working Ports: SAE 8Center System: OpenMounting: 2 Bolts M8Nominal Flow: 13GPMRelief Valve: AdjustableFluid Temperature: 5 to 176FValve Type: 4 Way 3 PlacesMax Operating Pressure: 3600PSIFeatures:1. Hydraulic directional valve is suitable for small tractor, tractors loader, light loader, log splitter, etc2. 3600PSI with adjustable pressure relief handle for maximum flow of 13GPM3. All spools of the product are standard double acting springs returning to neutral place4. This product adopts durable cast iron material and hard chrome plated valve core design to make the product has a long service life5. Used to manage and guide the flow of hydraulic oil between hydraulic pumps and hydraulic cylinders, motors, tanks, etcPackage Includes:1 x 3 Spool Hydraulic Directional Control Valve
- Specification: 3 spool, 13GPM flow rating, SAE ports, 3600PSI max pressure, 4 way 3 places valve type
- Material: Made of cast iron construction it have higher strength and durability
- Design: All spools of the product are standard double acting springs returning to neutral place
- Product Use: Fit for small tractor, tractors loader, light loader, log splitter, etc
- Products Include: 1Pcs 3 spool 13GPM 3600PSI SAE ports hydraulic directional control valve
| Size | 4717.5 cubic centimeters |
|---|---|
| Brand Name | Timunr |
| Unit Count | 1.0 Count |
| Valve Type | Multi Port Valve |
| Item Weight | 6400 Grams |
| Manufacturer | Timunr |
| Model Number | Does not apply |
| Material Type | Cast Iron |
| Exterior Finish | Chrome |
| Item Dimensions | 9.06 x 7.28 x 4.13 inches |
| Number of Ports | 10 |
| Maximum Pressure | 3600 Pound per Square Inch |
| Specification Met | sae |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 1 Inches |
| Outlet Connection Type | SAE |
| Manufacturer Part Number | TIM-1455095-176259-UNR |
